Description
Product Name: Oral Liquid Bottle Washing, Drying, Filling and Rolling Linkage Production Line Product Code: 1083318126805405696

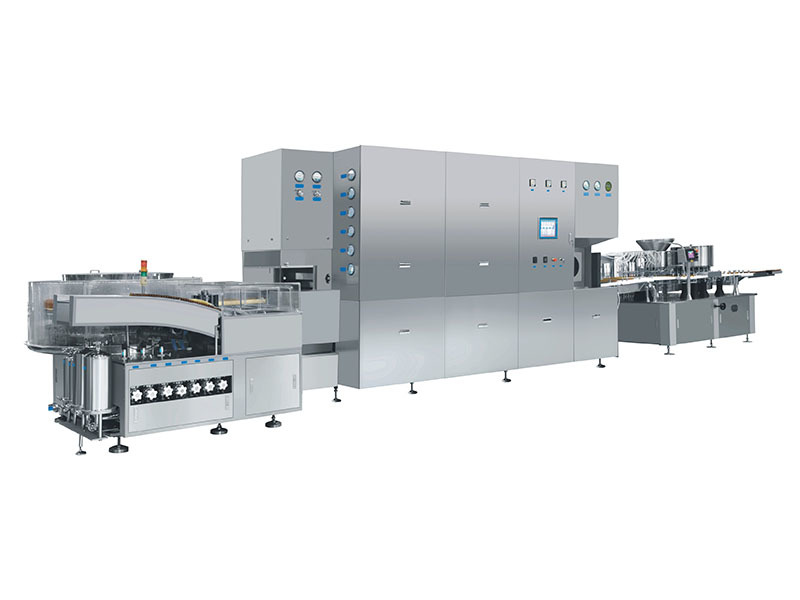

The oral liquid bottle washing, drying, filling and rolling linkage production line consists of three single machines: CLQ ultrasonic vertical cleaning machine, RSM sterilization and drying machine, and DGZ filling and rolling machine. It is divided into three working areas: cleaning, drying and sterilization, and filling and rolling. The units can be produced in linkage or used alone. The equipment is suitable for the production of oral liquid bottles with a specification of 5-25ml; The linkage line can automatically complete multiple processes such as pouring water on oral liquid bottles, ultrasonic washing, blowing compressed air, flushing circulating water, blowing compressed air, flushing fresh water, blowing compressed air, preheating, high-temperature sterilization, cooling, bottle sorting, filling, capping, rolling, and plating.
Performance characteristics:

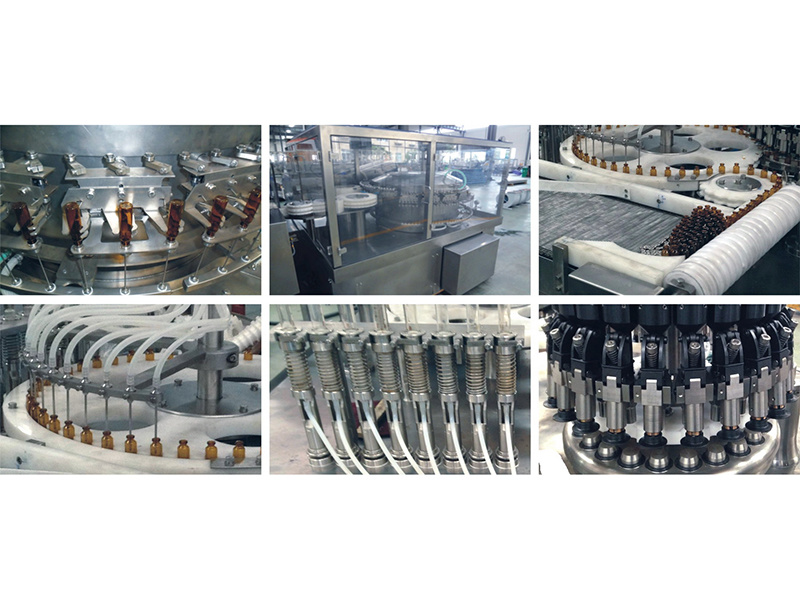

1. The vertical bottle washing machine adopts a mechanical arm to clamp bottles, suitable for various specifications of oral liquid bottles;
2. The bottle cleaning adopts the method of reciprocating tracking and insertion of water vapor spray needle, utilizing the principle of ultrasonic cleaning and alternating water vapor spray flushing, which has good cleaning effect and saves energy; The equipment is equipped with a needle holder anti shake device to ensure the accuracy of needle insertion, low bottle breakage rate, and wide versatility.
3. The sterilization dryer adopts an integral tunnel structure, using far-infrared heating tubes and stainless steel heating tubes for double-layer heating temperature, with good uniformity.
4. The filling and capping machine adopts stainless steel pump or ceramic pump for filling, with accurate filling volume, defoaming and no dripping.
5. The equipment can achieve no filling, no removal of caps, and no rolling of caps for missing bottles.
6. Adopting a gentle rolling cap design, the bottle damage rate is low. The whole machine is capable of variable frequency and stepless speed regulation.
